Monaco

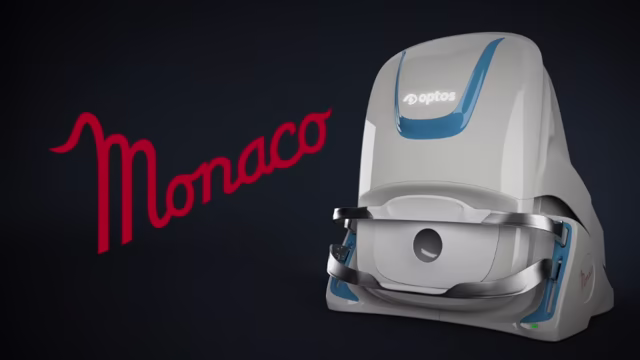

Monaco combines optomap ultra-widefield technology with SD-OCT creating a fast, convenient, multi-modal imaging tool. Monaco can produce a 200°, single-capture retinal images of unrivaled clarity and can display a six-image overview including color, AF, and OCT of both eyes in as little as 90 seconds.

Monaco provides an exciting new way to enhance your clinical exam. The only ultra-widefield retinal imaging device with integrated SD-OCT, Monaco produces a 200° single-capture optomap image in less than ½ second and also provides cross-sectional 40° OCT views of retinal structures. Monaco enables a rapid multimodal capture featuring color, autofluorescence, and OCT scans, for both eyes, in as little as 90 seconds.

Monaco offers the following benefits:

• UWF with integrated OCT saves time, space, and minimizes patient movement
• Central pole OCT provides comprehensive multimodal imaging
• optomap images and OCT scans are correlated to facilitate pathology examination
• Automated OCT Analysis Tools
• Color, AF, and OCT images are shown in a single, comprehensive view
• A comprehensive Reference Database that enables the results of OCT analysis to be shown in relation to 1%, 5%, 95%, and 99% of the RDB population

Technical Specifications

Image Modalities

optomap color and optomap plus (red and green laser):
Color composite view
Green laser view
Red laser view
optomap af (green laser): autofluorescence
Optical Coherence Tomography (OCT)

Resolution

optomap plus: 14 μm
optomap: 20 μm

Exposure Time

Less than 0.4 seconds

OCT Scan Types

Line Scan
Raster Scan
Retina Topography Scan
Optic nerve Head (OnH) Topography Scan
Retinal nerve Fiber layer (RnFl) Scan

Wavelengths

Red laser: 635 nm
Green laser: 532 nm (for af )

Tomographic Imaging

Signal Type: Optical scattering from tissue
Signal Source: Super luminescent Diode (SlD) 840 nm
Optical Power: laser safety Class-1 following IEC/en60825-1:2014
Typical Axial Resolution: <7 micron (in tissue) Digital on-screen <5 micron
Transverse Resolution: <20 micron (in tissue), Digital on-screen <15 micron
Scanners: Galavanometric with X, Y mirrors
Scan Depth: 2.3 mm (in tissue)

OCT Scan Characteristics

Spectral Domain OCT
A-Scan rate up to 70k cycles/s
Active eye tracking
Automatic scan positioning

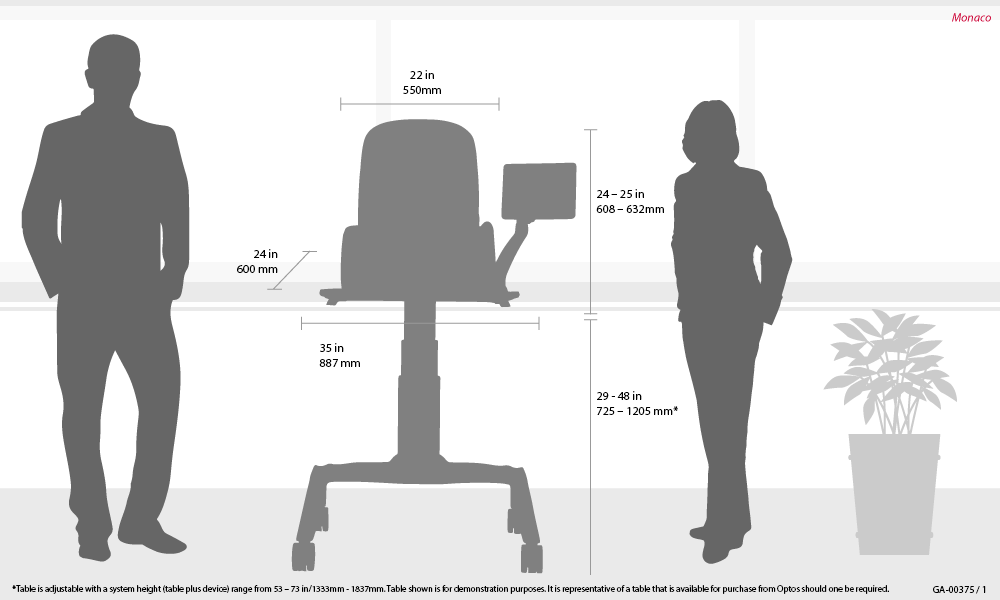

Footprint

Width: 550 mm/22 inches
Depth: 570 mm/23 inches
Height: 606 - 632 mm/24-25 inches
